BraunAbility
Turnout swivel seats

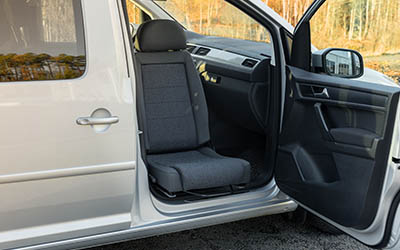

The Turnout is a swivel seat base that rotates the car seat towards the door opening, bringing the front edge out over the sill so the transfer to and from a wheelchair is shorter and simpler. It is one of the most economical and straightforward swivel solutions we fit, available in manual and powered versions.
Fitted, calibrated and serviced from our fully equipped Hemel Hempstead workshop.
Overview
A shorter, simpler transfer — fitted between seat and floor
Getting seated in a low-built car can mean twisting round and lowering yourself down into an awkward position. The Turnout takes the strain out of that movement by rotating the seat so its front edge extends slightly over the sill, bringing it closer to you and cutting the distance you need to travel.
Fitted between the vehicle floor and the car seat, the Turnout locks firmly in the outermost position, giving you a stable point to hold onto or push against while you transfer. It works well for wheelchair users and for anyone who finds the twist-and-drop into a normal seat difficult.
Choose manual operation, where a side lever releases the seat to rotate freely, or powered operation with a simple two-button hand control. Both are available for 2-door and 4-door vehicles, and for driver or passenger side fitting.
Key benefits
Simple, dependable, and easy to live with
Shorter transfer distance
Rotating the seat out over the sill brings it closer to a wheelchair, so there is less distance and less twisting involved in the move.
Locks securely in position
Once fully rotated, the seat locks firmly in place, giving you something solid to hold onto or push against while transferring.
Manual or powered
Choose a hand-operated lever release or a two-button powered control, depending on what suits you best.
Fits low-built cars
Designed for hatchbacks, coupés, saloons, estates and MPVs — where a full seat lift like the Turny Evo is not needed.
2 or 4-door fitting
Available as a dedicated 2-door or 4-door version, matched to your vehicle layout.
No permanent modification
Fitting is fully reversible in most vehicles, so it will not affect resale value and can move with you to your next car.
Operation
Choose manual or powered rotation
Manual operation — Turnout / Turnout 4
Lift the lever on the side of the base and the seat rotates freely in or out. Release the lever once you reach the end position and the seat locks automatically.
Powered operation — Turnout 2E / Turnout 4E
A two-button hand control does the work for you — press OUT to rotate the seat front towards the door opening, and IN to bring it back into the vehicle.
Specification
Turnout technical details
All four versions swivel through 0–97° and carry up to 180 kg. Height on 2-door models depends on how the included spacer is mounted.
Turnout 2 — manual, 2-door
Length × width 49 × 45 cm. Height 5.8/7.1 cm. Swivel range 0–97°. Unit weight 21 kg. Weight capacity 180 kg.
Turnout 4 — manual, 4-door
Length × width 49 × 45 cm. Height 7.9 cm. Swivel range 0–97°. Unit weight 21 kg. Weight capacity 180 kg.
Turnout 2E — powered, 2-door
Length × width 49 × 45 cm. Height 5.8/7.1 cm. Swivel range 0–97°. Unit weight 22 kg. Weight capacity 180 kg.
Turnout 4E — powered, 4-door
Length × width 49 × 45 cm. Height 7.9 cm. Swivel range 0–97°. Unit weight 25 kg. Weight capacity 180 kg.
Tested and approved
Every Turnout base is 10,000-cycle tested, crash test approved, climate tested, EMC approved and flammability approved.
Vehicle solutions
Turnout BIS — a complete kit for the Ford B-Max
The Ford B-Max seatbelt is built into the seat itself, which creates far higher impact loads on a swivel base in a crash. BraunAbility engineered the Turnout BIS specifically to handle this, and the kit has passed rigorous crash and pull testing.
The kit includes the Turnout swivel base, a vehicle-specific mounting bracket and a seat with an integrated seatbelt, fitted by our team in our own Hemel Hempstead workshops — giving you a complete, ready-to-use solution for this vehicle.
Seats & accessories
Combine with the right seat
The Turnout base pairs with a choice of crash-tested seating, and can be combined with other BraunAbility solutions to remove the lift from a transfer altogether.
BEV Kids seat
A highly adaptable seat with easy-slide sides for transfers, plus torso and lumbar support options — and it can be shortened for children.
Carony Classic
Combine with Carony Classic so the whole seat slides out to meet the wheelchair, eliminating the lift entirely.
Turny Low Vehicle
Want fully automatic operation with wired remote or phone control? The Turny Low Vehicle offers similar functionality to the Turnout.
Funding
Funding options for the Turnout
The Turnout swivel seat can be supplied through the Motability Scheme as well as privately. Get in touch and our team will talk you through eligibility, vehicle suitability and the fitting process for your car.
Common questions
How much weight can the Turnout take?
All four versions are rated to 180 kg.
Will it fit my car?
The Turnout suits low-built cars including hatchbacks, coupés, saloons, estates and MPVs, in 2-door or 4-door versions, on the driver or passenger side. Call us and we will check your vehicle.
Does fitting damage the vehicle?
In most vehicles fitting is fully reversible, so it will not affect resale value and the base can be moved to your next car.
