Q'Straint / Dahl / EZ Lock
Wheelchair tie down straps and electric docking systems from Q'Straint, Dahl and EZ Lock
Keeping a wheelchair — and the person in it — properly secured on every journey. We fit and configure four-point tie-down and automatic docking systems from Q'Straint, Dahl Engineering and EZ Lock, matched to your wheelchair and vehicle at our Hemel Hempstead workshop and serving drivers across Hertfordshire.
Fitted, calibrated and serviced from our fully equipped Hemel Hempstead workshop.
Four-point security, done properly
Whether a wheelchair user is travelling as a passenger or driving the vehicle themselves, the securement needs to be rock solid. As a rule of thumb, a wheelchair travelling as a passenger should be held by four separate tie-down points — two at the front, two at the rear — with the occupant then wearing a proper 3-point seat belt on top. That's the standard SDL always works to, and the standard we'll help you achieve.
Not every situation calls for the same hardware, though. A passenger who transfers out of their chair for every journey has very different needs to someone who wants to drive from the wheelchair itself. That's why we offer three distinct systems here — a Q'Straint solution built around automated docking and heavy-duty retractors, Dahl Engineering's TÜV-tested electric docking stations, and the EZ Lock system with over three decades in the field and 180,000+ units installed.
We'll talk you through which combination suits your vehicle, your chair, and the way you actually travel — often as part of a wider adaptation project, sometimes as a standalone fit at our Hemel Hempstead workshop.
Independent, not tied to one brand
We work with Q'Straint, Dahl and EZ Lock side by side, so the recommendation is based on your chair and vehicle — not on one manufacturer's range.
Fitted as part of the bigger picture
Tie-downs and docking rarely stand alone. We regularly fit this hardware as part of a wider vehicle adaptation, or on its own where that's all that's needed.
Ongoing servicing and support
Once fitted, we can maintain and service the system for the life of the vehicle, so it keeps performing exactly as tested.
Three systems, one page
Choose the right system for how you travel
Each of the three brands below solves a slightly different problem. Read the one that fits, or compare all three.
Q'Straint — docking and retractors
The QLK-150 automated docking system for wheelchair drivers, alongside QRT-350/550 retractors for four-point passenger securement. The widest bracket range on the market and the only system independently crash-tested forward, rearward and sideways.
Dahl Engineering — electric docking
Danish-engineered docking stations — the Mk II and the height-adjustable VarioDock — independently TÜV-tested to EU vehicle safety standards and approved against 160+ specific wheelchair models.
EZ Lock — automatic docking
A simple, self-contained docking base that lets a wheelchair user lock themselves in without assistance. Over 180,000 units installed since 1986, with an all-steel build and WC-18 certification.
Q'Straint
Q'Straint QLK docking and QRT retractor range
The world leader in wheelchair and occupant securement, offering both a driver-focused automated docking system and a full four-point passenger tie-down range.

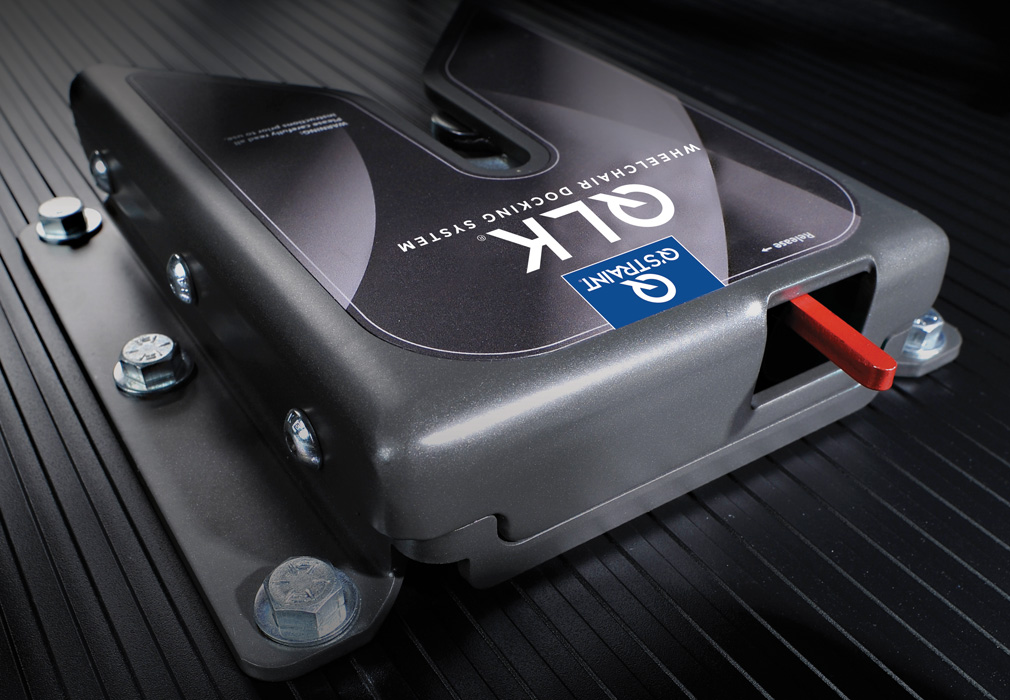

If the wheelchair user is the one driving, the QLK-150 is the flagship option — an automated docking system designed to look and feel like part of the vehicle rather than an add-on. It's paired with the largest bracket library in the industry, including brackets only compatible with QLK hardware.
- Dash control and remote release — a slim, low-profile dash pad with LED status, plus an optional key-fob remote so a carer can release the chair from outside the vehicle.
- Advanced stabiliser — replaces the older stabilising fork, letting the chair sit securely in the driving position without sacrificing manoeuvrability.
- Adjustable ground clearance — base mounts from 1.5" (38mm) up to 4" (100mm), so even low-clearance power chairs can be docked safely.
- Triple-direction crash testing — the only docking system independently tested forward, rearward and sideways, and the first to meet the higher WC19 load requirement.
For passengers who stay seated in their own chair without driving, the QRT-350 and QRT-550 retractors deliver four-point securement with self-tensioning reels — rated to 150kg and a class-leading 200kg respectively — while meeting the WC18 standard.
Q'Straint
QLK-150 and QRT retractors at a glance
Vehicle applications
Minivan / WAV
Base mount range
1.5"–4" (38–100mm)
Crash testing
Forward, rearward and sideways
Warranty
3 years limited
QRT-350E
150kg rated, meets WC18
QRT-550E
200kg rated, meets WC18
Dahl Engineering
Dahl docking systems — Mk II and VarioDock
Danish-engineered electric docking stations, independently TÜV-certified and tested against one of the widest approved wheelchair lists in Europe.
Dahl Engineering builds two complementary docking stations. The Docking Station Mk II is the longer-standing model — the only docking system on the market TÜV-certified to the EU's M1 vehicle safety requirements, and proven in testing to withstand a combined wheelchair-and-passenger load in excess of 200kg when used alongside a conventional floor-mounted seatbelt.
The newer VarioDock adds electric height adjustment to the same core mechanism, and because Dahl designed it around the existing bracket standard, almost every chair already approved for the Mk II will also dock with VarioDock. It can also anchor Dahl's own COMFORT and HYBRID vehicle seating.
- TÜV-tested fitting kits — approved to ECE regulations 14 and 17 and EU regulation 2018/858, so the whole installation is certified, not just the docking head.
- 160+ approved wheelchairs — tested and matched to Dahl hardware in line with ISO 10542-1:2012 and ISO 7176-19:2022.
- Height-adjustable option — VarioDock raises and lowers electrically, useful where a driver needs a different seating height to a passenger configuration.
- Full documentation — layout sketches and fitting-kit matching handled directly with Dahl to confirm the correct part number for your vehicle.
Dahl Engineering
Dahl at a glance
Tested load rating
200kg+ (chair and user)
Certification
TÜV / EU M1, ECE R14 and R17, EU 2018/858
Approved chairs
160+ models (ISO 10542-1:2012, ISO 7176-19:2022)
Height adjustment
VarioDock only
Origin
Thisted, Denmark
EZ Lock
EZ Lock automatic docking system
A no-fuss docking base with over three decades on the road and more units installed than any comparable system.

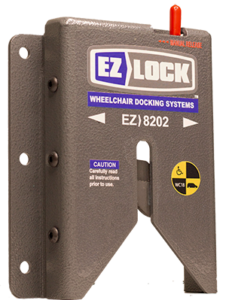

EZ Lock strips wheelchair docking back to its simplest, most dependable form. An interface bracket fitted to the wheelchair carries a docking pin; the driver or passenger guides that pin into the V-shaped opening of the floor-mounted base and rolls forward a few inches. A pair of steel locking levers close around the pin and hold the chair firmly in place, with the onboard electronics monitoring docking status for the rest of the journey.
Because the whole process is self-directed, EZ Lock suits both wheelchair drivers and seated passengers who want to secure themselves without waiting for assistance — and interface brackets are available across a wide range of power and manual chairs.
- Self-docking, no assistance needed — line up, roll forward, and the base does the rest.
- All-steel construction — a sturdy docking base built for daily use, backed by field-tested electronics.
- Proven at scale — over 180,000 EZ Lock systems installed since 1986.
- WC-18 certified — independently tested to the relevant wheelchair securement standard.
Side by side
Which system fits your situation?
A quick-reference comparison — your SDL advisor will confirm the best fit for your vehicle and chair.
Best for
Q'Straint: drivers (QLK-150) and seated passengers (QRT retractors). Dahl: drivers needing certified, adjustable docking. EZ Lock: drivers or passengers wanting the simplest self-docking routine.
Signature strength
Q'Straint: the only system crash-tested in three directions, with the widest bracket range. Dahl: TÜV-certified to the EU M1 standard with 160+ approved chairs. EZ Lock: field-proven simplicity, 180,000+ installations since 1986.
Height adjustment
Q'Straint: base mounts 1.5"–4" (fixed selection). Dahl: electric adjustment with VarioDock. EZ Lock: fixed base height.
Key certification
Q'Straint: ADA, FMVSS/CMVSS, ISO 10542-1, WC18/WC19. Dahl: TÜV (EU M1), ECE R14/R17, ISO 7176-19. EZ Lock: WC-18.
Release
Q'Straint: optional key-fob remote. Dahl: standard control unit. EZ Lock: manual guided release.
Funding
Available through the Motability Scheme
This range can be funded through the Motability Scheme as well as bought privately. Speak to our team to check eligibility and to see how a tie-down or docking system fits within your existing or upcoming Motability vehicle. Every system is quoted for your specific vehicle and wheelchair, so we ask you to call the team for pricing.
Common questions
How many tie-down points does a wheelchair passenger need?
Four — two at the front of the chair and two at the rear — with the passenger also wearing a proper 3-point seat belt. That is the standard we always work to.
Which of the three systems will suit me?
It depends on whether you drive from your wheelchair or travel as a passenger, the make and model of your chair, and the vehicle. Q'Straint covers both driving and passenger use, Dahl suits drivers needing certified and adjustable docking, and EZ Lock is the simplest self-docking routine. We will confirm the right fit with you.
Will it work with my wheelchair?
Most power and manual chairs can be fitted with an interface bracket. Dahl alone has over 160 approved wheelchair models, and Q'Straint has the widest bracket range on the market. Tell us your chair's make and model and we will check.
Is it available on Motability?
Yes. Tie-down and docking systems can be funded through the Motability Scheme, or bought privately.
Can you service it afterwards?
Yes. We maintain and service the systems we fit for the life of the vehicle, at our Hemel Hempstead workshop.
